01
Highlight 1

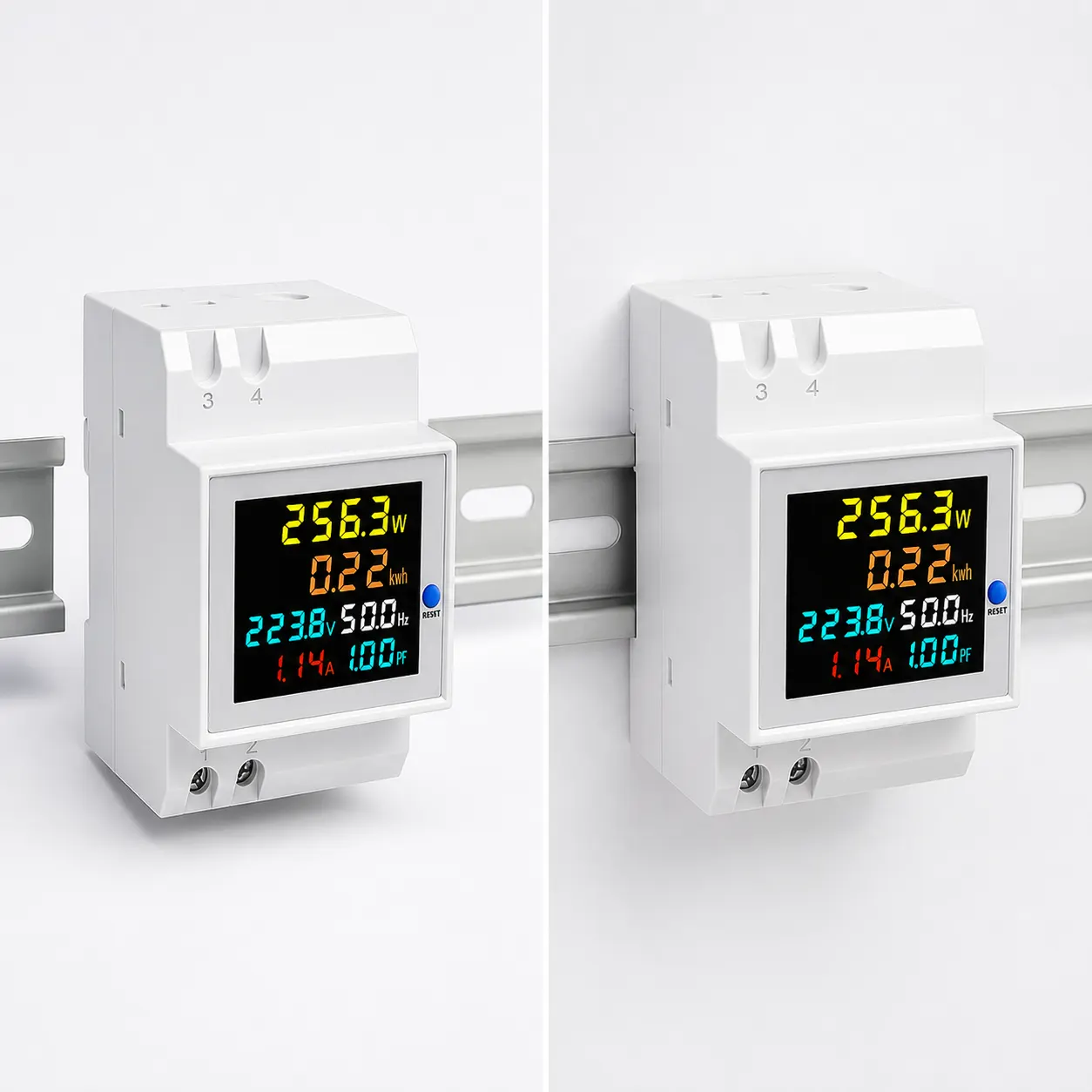

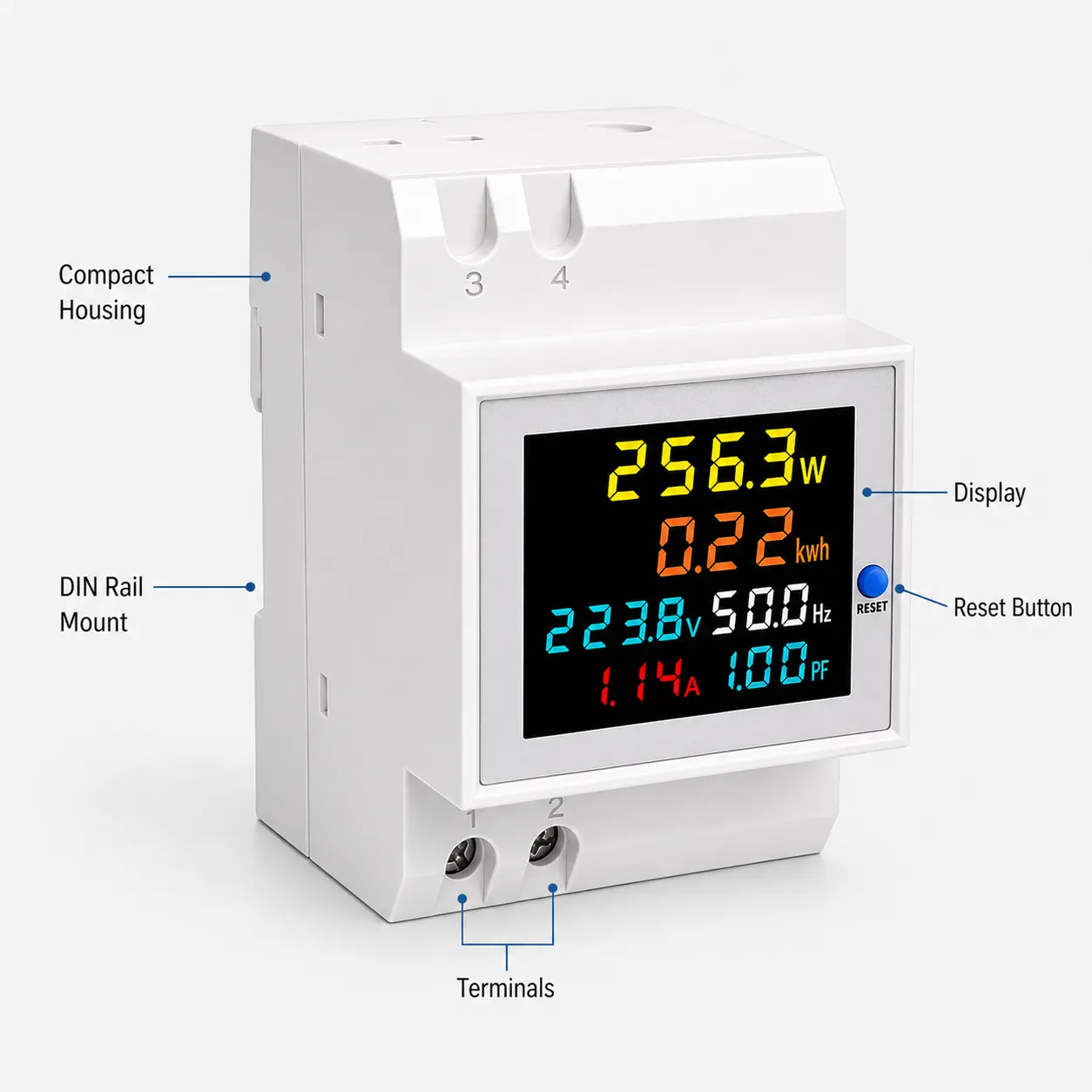

The HT D52-2066 has a flame-retardant ABS housing and clips onto a DIN rail in about three module spaces.
Selected kit
HT D52-2066 DIN-rail energy meter, AC 40-300 V, external CT

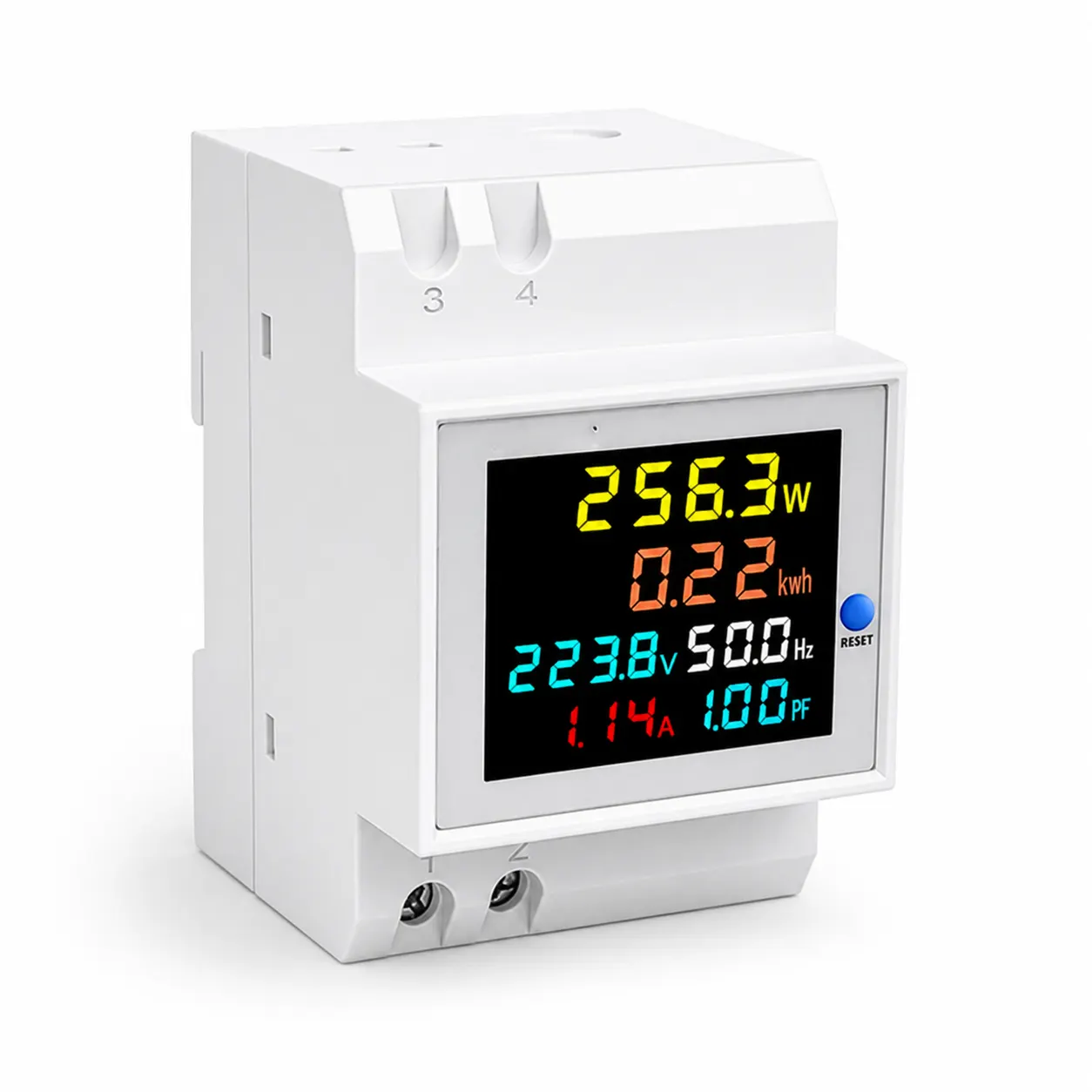

A white DIN-rail meter that shows voltage, current, power, kWh, frequency and power factor together. This version reads AC 40-300 V through an external current transformer, up to 100 A.
£23.59- The HT D52-2066 has a flame-retardant ABS housing and clips onto a DIN rail in about three module spaces.

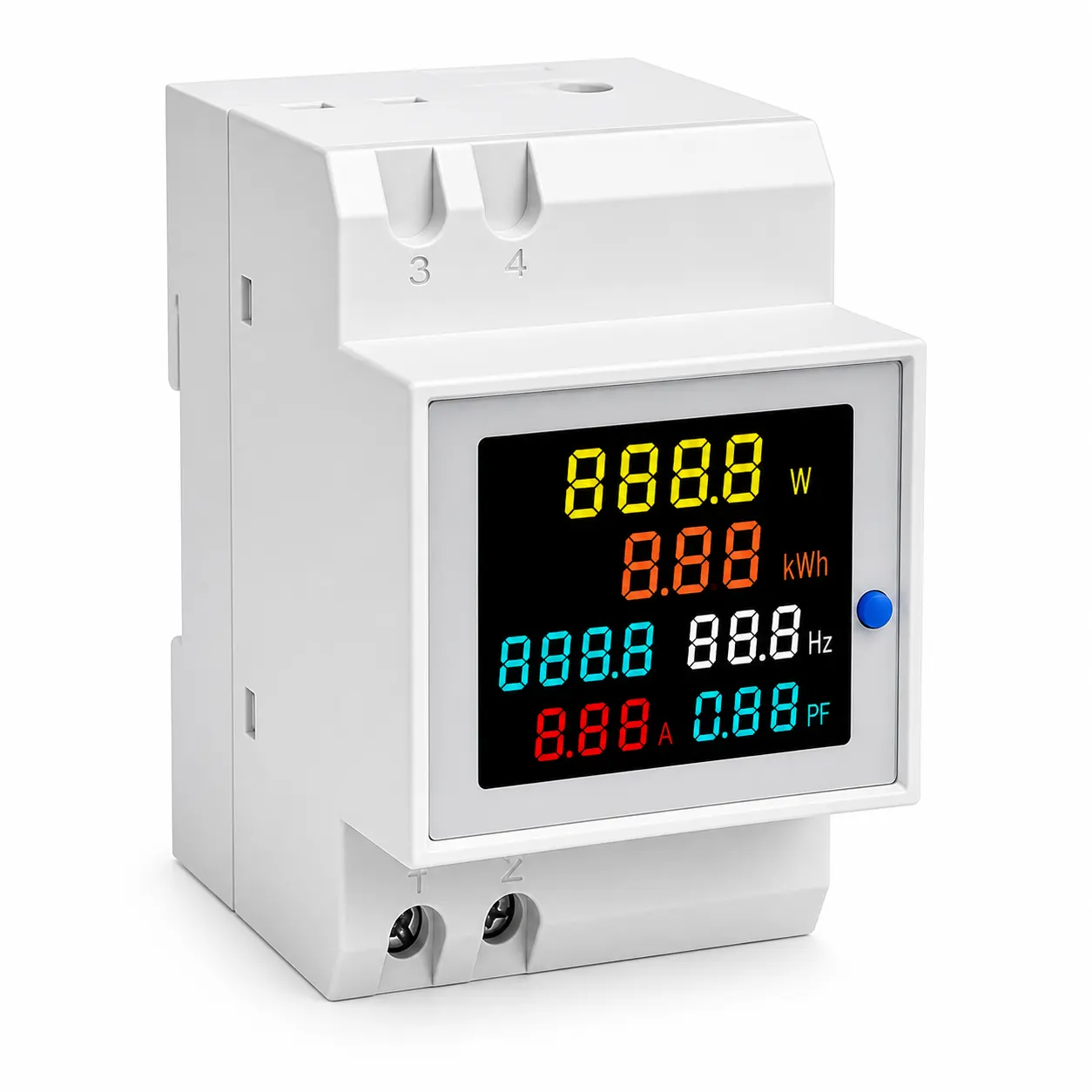

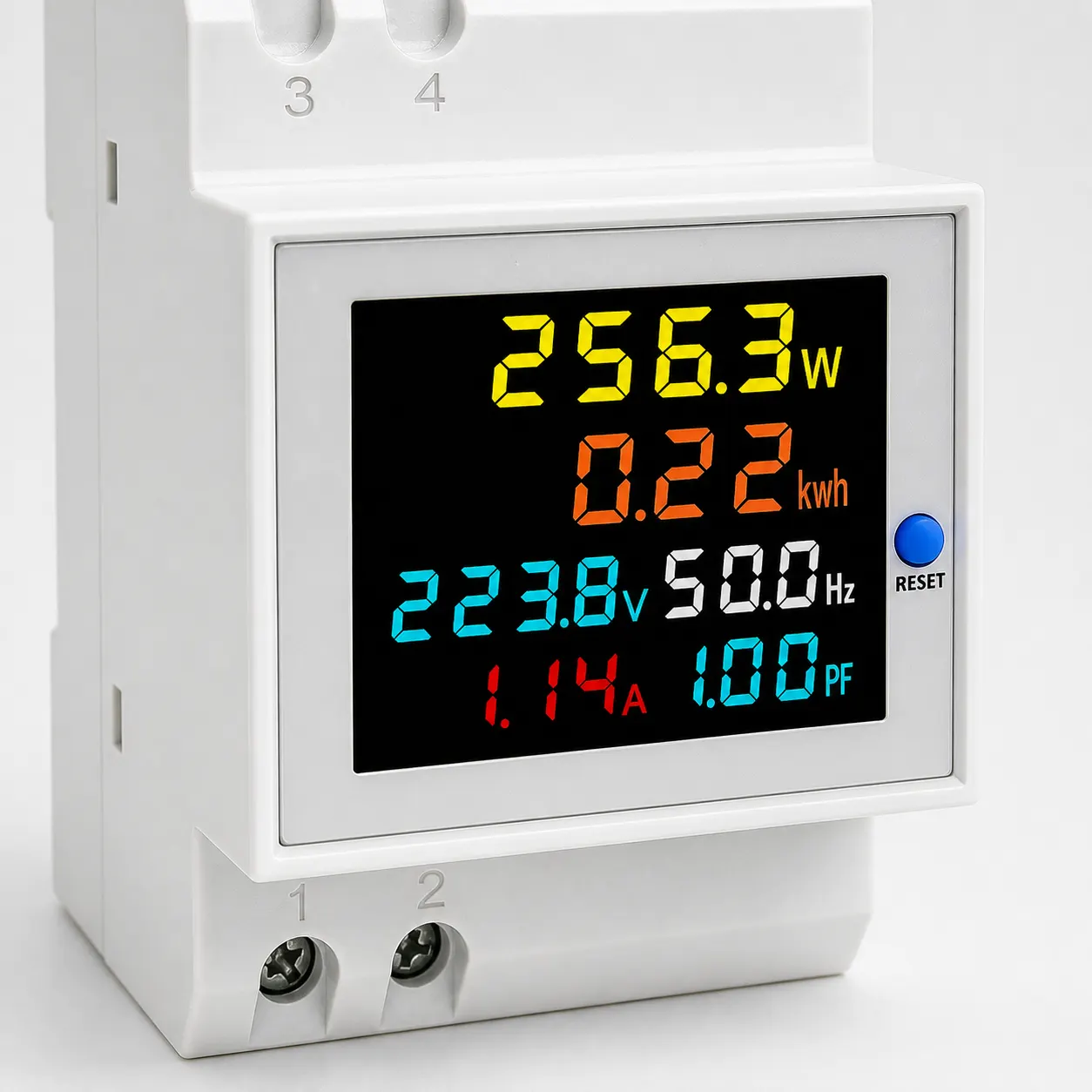

- The colour LCD shows six readings at once: voltage AC 40.0-300.0 V, current 0-100.0 A with an external current transformer, energy 0-99999 kWh, frequency 45-65 Hz and power factor 0.00-1.00.
- Hold RESET for about five seconds to zero the kWh count. The meter keeps that total when the supply is off and carries on when power returns.
The details that matter
What you're actually buying.
Decide whether this htpowermonitor.co.uk listing fits the job, budget and setup.
02
Highlight 2
The colour LCD shows six readings at once: voltage AC 40.0-300.0 V, current 0-100.0 A with an external current transformer, energy 0-99999 kWh, frequency 45-65 Hz and power factor 0.00-1.00.
03
Highlight 3
Hold RESET for about five seconds to zero the kWh count. The meter keeps that total when the supply is off and carries on when power returns.
Guides
Practical guides
Buying guide
Clamp Power Monitor For Hard Wired Appliance
This guide helps UK buyers compare clamp power monitor for hard wired appliance using only the listed product details before choosing the next step.
Use cases
CT Clamp Energy Monitor UK
This guide helps UK buyers compare CT clamp energy monitor UK using only the listed product details before choosing the next step.
Use cases
Clamp KWh Meter For Single Appliance
This guide helps UK buyers compare clamp kWh meter for single appliance using only the listed product details before choosing the next step.
Good to know
Frequently asked questions
What does the screen show?
Active power (W), energy (kWh), voltage, frequency, current and power factor, together on the colour LCD.
How do I wire the external CT?
Connect the measured voltage to terminals 1 and 2. Pass the live or the neutral through the CT, and join the CT secondary to terminals 3 and 4. This version covers AC 40-300 V, up to 100 A. The meter body is 54 × 80 × 48 mm.
How soon will it be dispatched, and when will it arrive?
Orders are dispatched in 1–3 business days, and typically arrive 2–4 business days after dispatch. Free UK Delivery applies to UK orders.
What if it is not right for me?
You can return it within 30 days. This is in addition to your statutory rights under the Consumer Contracts Regulations 2013.
Ready when you are
clamp kWh energy monitor
£23.59See price and options
